MODEL: SCC-001

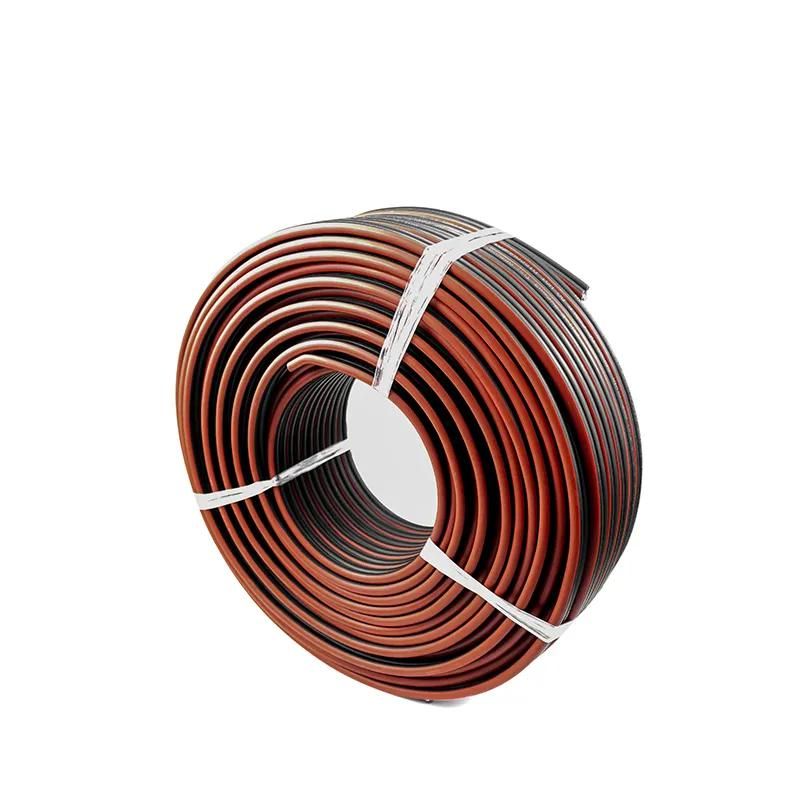

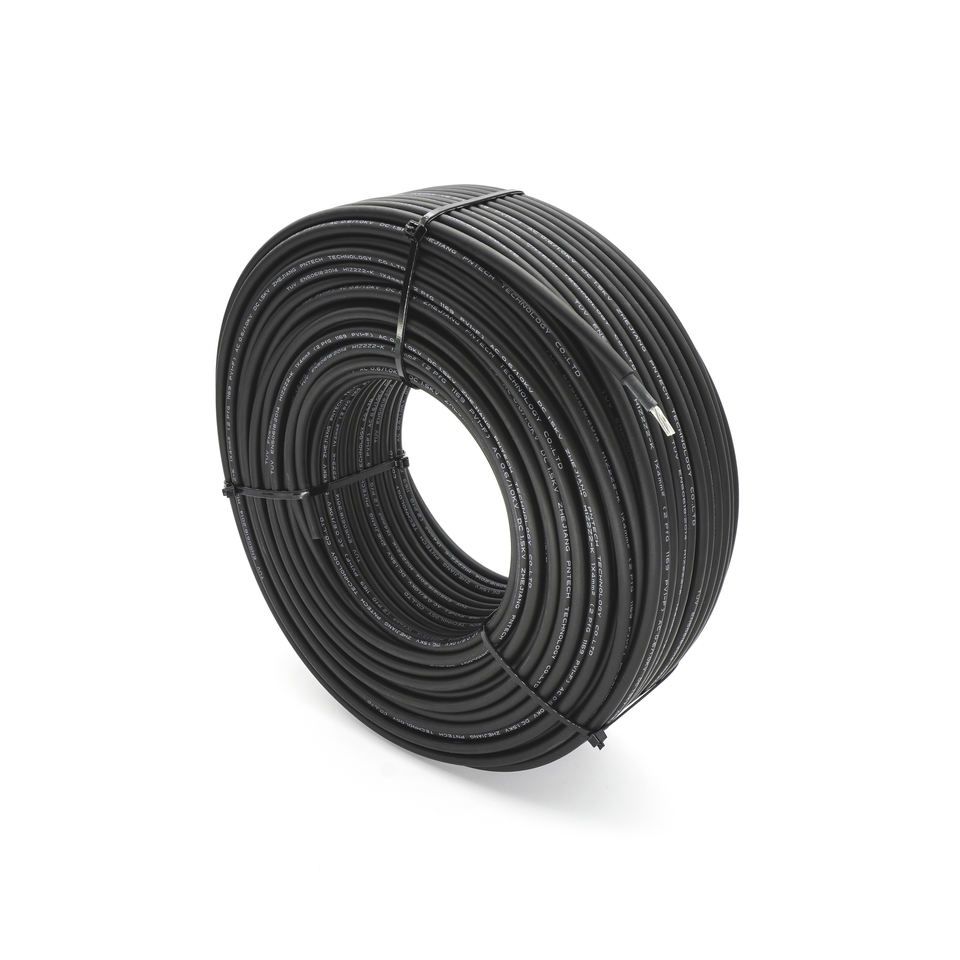

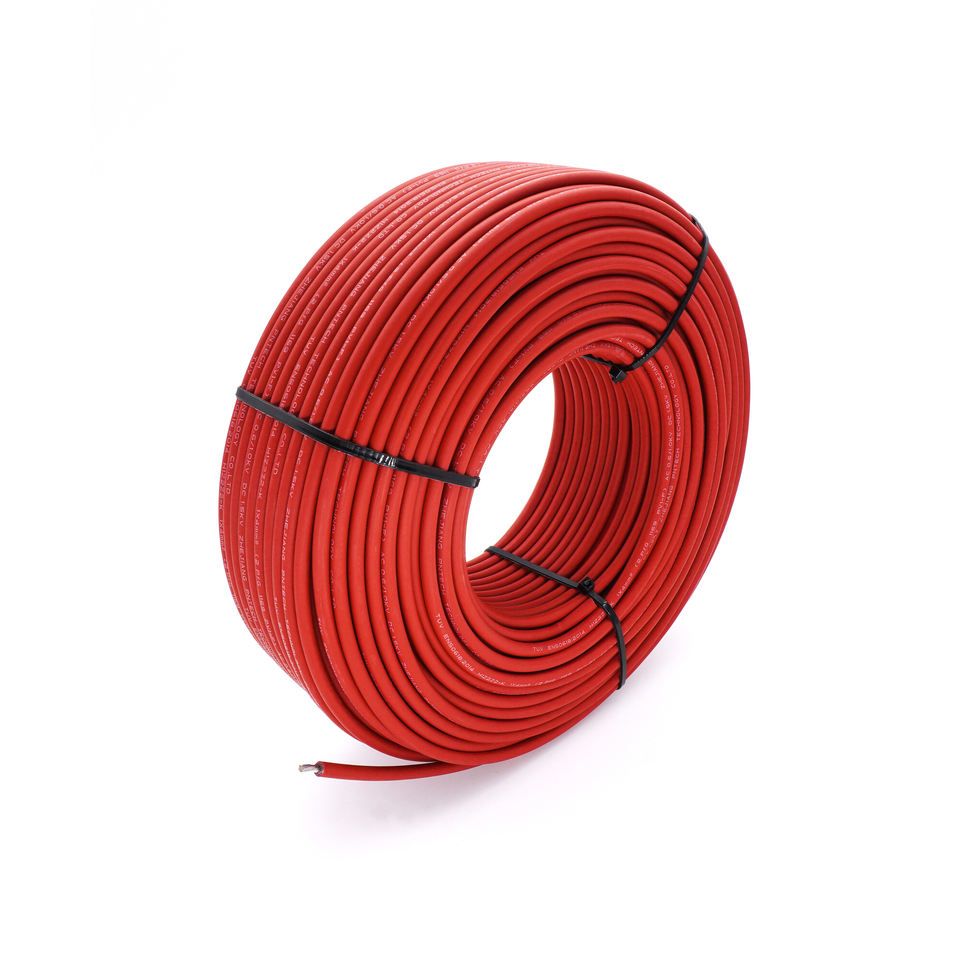

Certificated solar power cable 1x6mm2 copper pv electrical solar wire cable
Bulk Pricing
Volume discounts available for wholesale and distribution orders.
Technical Specifications
- Cross Section（mm²）：1×1.5
- Conductor Construction（Φn/mm ±0.015）：26/0.29
- Conductor Stranded（Φmm±0.02）：1.58
- Cable OD（Φmm±0.02）：4.6
- Conductor DC Resistance（Ω/km）：13.5
- Carrying apacity（AT 60ºC(A)）：25
- Picking（mater/roll）：250
Product Details
Product Overview

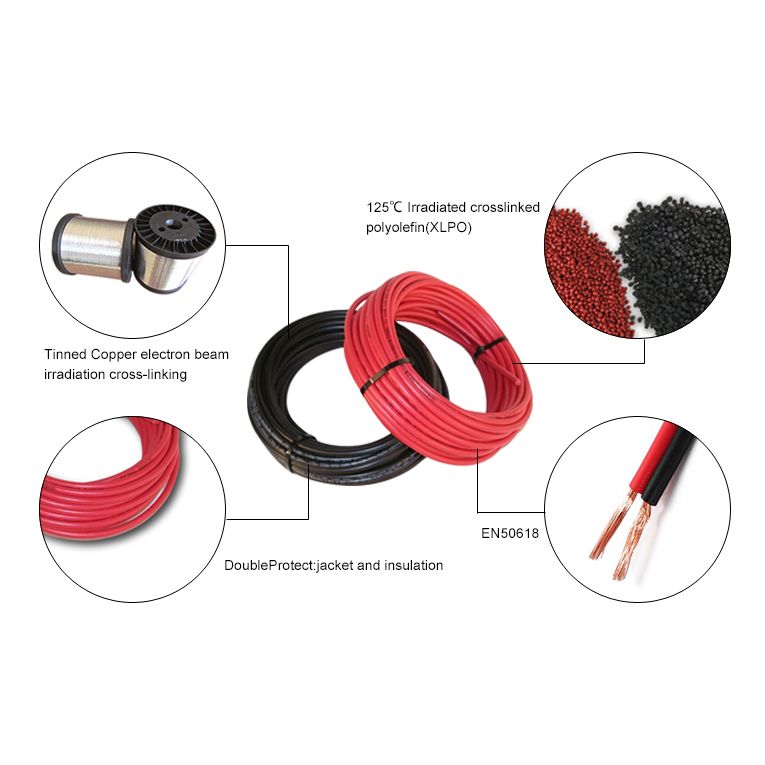

Premium 1x6mm² tinned copper photovoltaic cable for reliable solar power transmission. CE and ISO 9001 certified, UV-resistant XLPE insulation delivers maximum conductivity across 12V, 24V, and 48V systems.
Key Features
- Weather Resistant: Withstands -40°C to +120°C. UV and moisture resistant XLPE insulation for long-term outdoor use.
- High Conductivity: High-purity tinned copper ensures maximum current flow with minimal resistance, reducing power loss.
- Easy Installation: Red & black cables for polarity identification. Flexible design simplifies routing in RVs and boats.
- Universal: Works with 12V, 24V, and 48V systems and all standard PV connectors.
- Certified Safe: Rated 600V UL / 2000V IEC. Meets international renewable energy standards.
Specifications
- Cross Section: 1×6mm²
- Conductor: Tinned Copper
- Insulation: XLPE (Cross-linked Polyethylene)
- Temperature: -40°C ~ +120°C
- Voltage: 600V UL / 2000V IEC
💼 OEM/ODM services available. Custom cable lengths, connector types, and packaging supported. Flexible MOQ for B2B orders. Contact us for volume pricing.
